Part of cruising is dropping the hook when the days sailing comes to an end, but there are other times when anchoring becomes necessary.

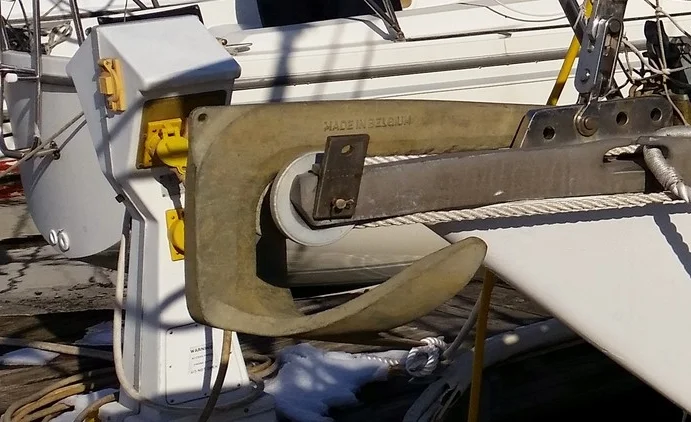

Our go to anchor is a 20kg (44lbs) Bruce (claw style) anchor attached to 300' of all chain rode. We use a Simpson Lawrence Seatiger 555 windlass to help bring it up. It's a manual windlass that doesn't bring it up fast, and takes a lot of work to raise anchor, but it always brings it up!
The Bruce always comes up full of mud and shells as it digs deep into the soft Chesapeake mud. Even when current change the boats direction by 180*, and we swing all the way around, this anchor holds. There have been times when the mud was only on a side fluke, indicating that the anchor was laying on its side, and it still held well. Mind you that I let out an excessive amount of chain and use a nylon snubber to take the strain off of the windlass and roller. If there is any wind or current, I usually let out between 140' to 180' of chain in 20' of water. I know it's more than needed, but I can sleep deeply knowing that the anchor is secure.
We did have a squall that hit us near New Point Comfort, VA while at anchor. The water was only 8 to 10 feet deep but we had 280' of chain out in preparation for the coming storm. Winds kicked up to 52 kn as the waves built and the rain came pelting down.
During this epic squall of 20 minutes, the anchor never dragged! The bottom was sand and shell, which provided excellent holding when paired with the Bruce.

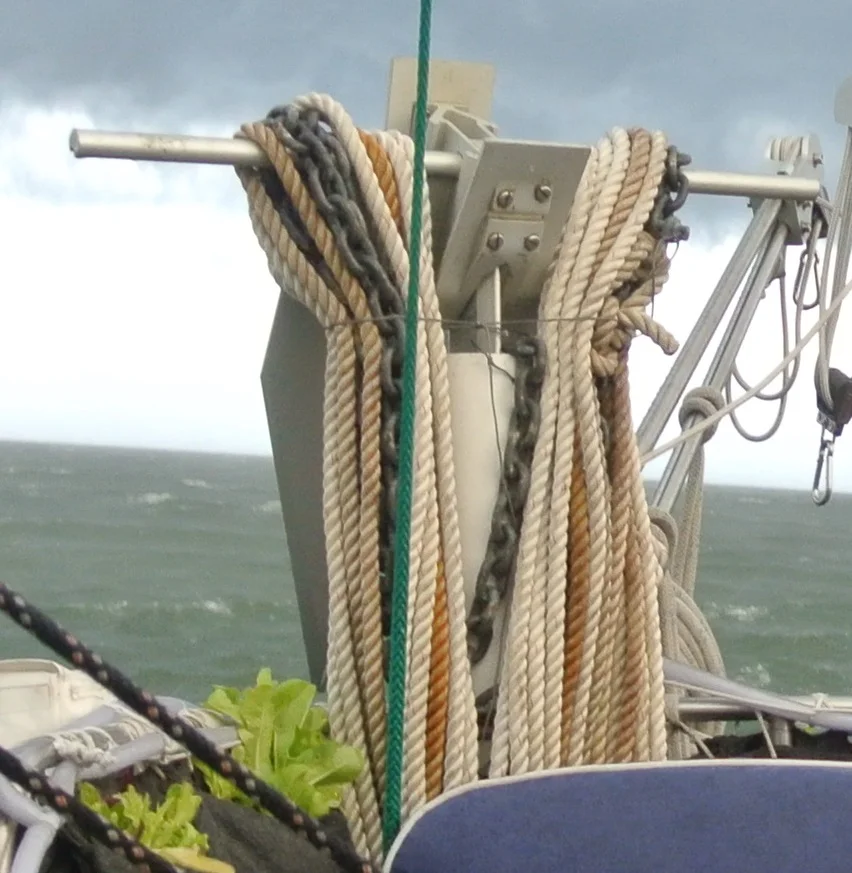

Our secondary anchor is mounted on the stern ready to deploy, a Fortress FX-37. This anchor could replace the Bruce, but the Bruce has held me through so many storms and poor anchorages that I would find it insulting to it to remove it from its throne at the bow. The FX-37 is attached to 30 feet of chain and then nylon rode. The plan is if something really bad were to happen, we could deploy the anchor in a hurry and move the attachment point to a bow cleat. Being stern mounted, we can reach this anchor in a hurry from the helm, yet it is out of the way when cruising or working with the bow anchor. It lives in a 4" PVC pipe lashed to the stern rail with sufficient rode for stern anchoring and kedging wrapped around its flukes.
I have only used this anchor once so far, it was in a sleepy creek and I wanted to keep the stern of the boat in the shade of a large tree, so I set it as a stern hook to keep the boat from swinging during the afternoon. Talk about overkill for a stern hook!
The Storm anchor is an 80lbs Fishermans Anchor, also called a Herreshoff Anchor. The large flukes will hold in mud, clay, and sand, the hooks of the flukes will hold in weeds and rocks, and the sheer weight will help it dig into anything it lays on. The reason it is my storm anchor and not my main bow anchor is that it weighs 80lbs, and the shape makes it hard to stow. The cross bar is actually supposed to lay flat along the stock so that it can be stored deep in a locker, never to be seen again. Since it weighs 80lbs, I would not be able to lug it out of a deep locker and assemble it while bouncing around in a storm. This is why it lives assembled and lashed to the toe rail. Its center of gravity is actually outside of the toe rail, so merely untying it will launch it. The problem is retrieving the heavy sucker! It takes the windlass to raise the anchor and then a halyard to hoist it onto the deck and get it lashed to the toe rail again. All the lines seen hanging from the crossbar are needed to retrieve the anchor and stow it.
If we had to deploy the anchor in an emergency, it would be a quick proceeding, but we would have to wait for the weather to turn dead calm before we would ever be able to consider recovering the anchor.
As far as when to anchor, the usual reason is to take a break from sailing; be it sleeping, a lunch hook, kedging, or because conditions call for it.
We usually drop anchor around sunset after a day of sailing, we let out a fair amount of chain, tie off the snubber, and rest easily that evening.
If we are out with friends, sometimes we will drop the hook while we all eat lunch. The Lunch Hook usually involves a very short scope, as it is a very temporary hold. In 20 feet of water, I would usually let out between 140 to 180 feet to sleep, I may only let out 60 feet for lunch. The more you let out, the more you need to pull back up in about an hour.
While we were cruising, we ended up anchoring because conditions demanded it. We had been becalmed and were riding the current South while we waited for the wind to return. It turns out the winds didn't come back that day, but the current did reverse and began taking us North. To avoid backtracking, we dropped anchor to hold our position. We ended up raising the anchor when at the following slack tide to ride South on the next current. Needless to say, we did not cover much ground that day.
Kedging is a nifty trik to keep in your sailors hat! When you need to move the boat, be it off a shoal or into shade, kedging can be your best friend. It is a rather involved procedure, so you need some serious motivation to get all the gear in order.
First you have to load the anchor in the dinghy and start rowing it away from the boat. If you are on a shoal, you have to row it out to deeper water. Once there, you deploy the anchor from the dinghy and let it set. Then you row back to the main boat and start winching in the anchor line. If you are not grounded too hard, this should be enough to pull you off the shoal. The less stressful way to kedge is to pull the boat into the shade. This is done by running the stern hook beyond where you want the boat to be. Then launch it like usual from the dinghy and pull in the stern rode. This will pull the stern to a desired spot and keep the boat from swinging.
For me, that desired spot is in the shade of a tree while it sit out and read after a long sail to get to the anchorage. Relaxing always feels better after a great accomplishment!
